These machines operate on a hydraulic system within a pressure range of 120-160 bar. This machine produces 18 Pcs of blocks of size 20×40×20 cm and 42 Pcs of paving stones in each pressing cycle. Wooden pallets are used for production.
The concrete is pressed into the molds and then pressed onto the pallets. Products produced in the same manner are left to dry on the production wooden pallets.
The control panel developed by PYRAMIDS engineers ensures ease of machine operation through sensors. The automation system allows for daily production storage. The control panel is user-friendly and provides the necessary timing for different types of blocks and paving stones.
Machine and Company Features:
PRODUCTION CAPACITY OF PM 42
PAVING STONE: 42 Pcs 8 HOURS 1200 m2 PRODUCTION CAPACITY | 15X40X20 BLOCK: 24 Pcs 8 HOURS 30000Pcs PRODUCTION CAPACITY |
RECTANGULAR BLOCK: 66 Pcs 8 HOURS 1250 m2 PRODUCTION CAPACITY | 10x40x20 BLOCK: 33 Pcs 8 HOURS 41000Pcs PRODUCTION CAPACITY |
HEXAGONAL PAVING STONES: 30 Pcs 8 HOURS 1000 m2 PRODUCTION CAPACITY | ROAD CURBSTONE: 4 Pcs 8 HOURS 2800Pcs PRODUCTION CAPACITY |
20X40X20 BLOCK: 18 Pcs 8 HOURS 22500 Pcs PRODUCTION CAPACITY | GARDEN CURBSTONE: 12 Pcs 8 HOURS 8600Pcs PRODUCTION CAPACITY |
TECHNICAL SPECIFICATIONS:
PRODUCTION CAPACITY | 120 – 160 PALLET PER HOUR |

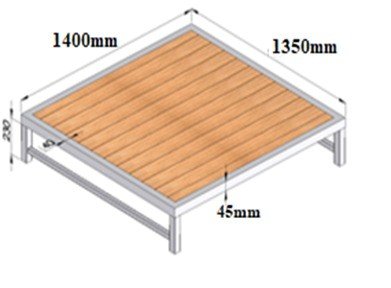

PALLET SIZE | 1400 x 1350 x 45 mm |
CONTROL | PLC AUTOMATION SYSTEM (SCHNEIDER)10 inch TOUCH SCREEN |
HOPPER CAPACITY | 1.8 m³ |
HYDRAULIC OIL CAPACITY | 600 lt |
UPPER VIBRATION | 3 kW x 2 |
LOWER VIBRATION | 4 kW x 6 |
TOTAL ELECTRICITY CAPACITY | 250 kW |
TOTAL VIBRATION FORCE | 30.000 |
INNER SWING SYSTEM | HYDRAULIC |
MAXIMUM PRODUCT HEIGHT | 30 cm |
MINIMUM PRODUCT HEIGHT | 6 cm |
MACHINE CHASIS FRAME | 10 mm PROFILE |
SYSTEM OF VIBRATION | CLASSIC BELT AND PULLEY VIBRATION |
ESTIMATED PRODUCTION CAPACITY IN 8 HOURS | 20x40x20 BLOCK – 20000 – 22000pieces INTERLOCK – 42.000 pieces |
PRESSING AMOUNT PER PRESS | 20x40x20 BLOCK – 18 pieces INTERLOCK – 42pieces |
STACKING LAYER | 5 – 7 ROW |
CLEANING BRUSH | PRESENT |
BACK DRY PRODUCT | HYDRAULIC DRIVER |
